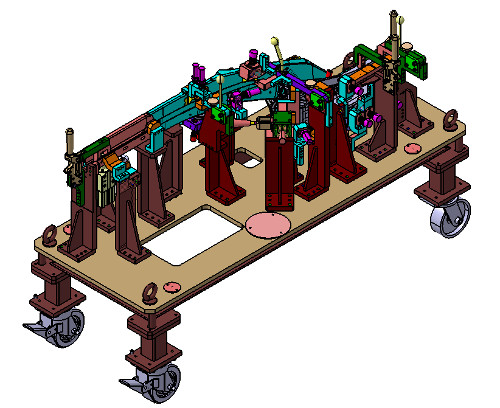

CHECKING FIXTURES

At Lean Automation, we specialized in designing and manufacturing Panel
checkers, checking fixtures that prioritize accuracy, repeatability, and operator
ergonomics. We ensures reliable quality control for vehicle frames, body sub-
assemblies, and various metal and plastic components.

We offer fixtures and gauges for a diverse range of automotive parts, including
BIW panels, assemblies, instrument panels, interior trim, seating, HVAC
components, chassis components, body panels, door seals, and trim. Lean Automation providing checking fixtures for Member(Rear & Front) Hinge Pillar, Wheel House, Fendor Apron, Panel Dash, Dash Side.

Key Features of Lean Automation Checking Fixtures:

1. High accuracy with tolerances for fixation points and dial indicator points of
   ±0.05mm.Durable construction using aluminium for the fixture body and steel for
   wear-and-tear components.
2. Integration of CAPTOR-S technology to reduce measurement risks and cycle time
   Minimum documentation includes a dimensional report, 2D assembly drawing, and
   assembly CAD, with optional reports available such as R&R reports, user manuals,
   and stabilization certificates.
